What is GIS?

Share:



This is probably the most asked question posed to those in the Geographic Information Systems (GIS) field and is probably the hardest to answer in a succinct and clear manner. GIS is a technological field that incorporates geographical features with tabular data in order to map, analyze, and assess real-world problems.  The key word to this technology is Geography – this means that some portion of the data is spatial.  In other words, data that is in some way referenced to locations on the earth. Coupled with this data is usually tabular data known as attribute data.  Attribute data can be generally defined as additional information about each of the spatial features.  An example of this would be schools. The actual location of the schools is the spatial data.  Additional data such as the school name, level of education taught, student capacity would make up the attribute data.  It is the partnership of these two data types that enables GIS to be such an effective problem solving tool through spatial analysis.

GIS operates on many levels.  On the most basic level, geographic information systems technology is used as computer cartography, that is for straight forward mapping. The real power of GIS is through using spatial and statistical methods to analyze attribute and geographic information.  The end result of the analysis can be derivative information, interpolated information or prioritized information.

GIS Versus Geospatial

There is an increasing trend to use the term geospatial instead of GIS.  What is the difference between geospatial and GIS?  Although some may use the terms interchangeably, there is a distinct difference between the two in that GIS refers more narrowly to the traditional definition of using layers of geographic data to produce spatial analysis and derivative maps.  Geospatial is more broadly use to refer to all technologies and applications of geographic data.  For example, popular social media sites such as Foursquare and Facebook use “check-ins” that allow their users the ability to geographically tag their statuses.  While those applications are considered to be geospatial, they don’t fall underneath the stricter definition of what makes up a geographic information system. More: What’s is the Difference Between GIS and Geospatial?

Other quotes to answer “What is GIS?”

“In the strictest sense, a GIS is a computer system capable of assembling, storing, manipulating, and displaying geographically referenced information, i.e. data identified according to their locations. Practitioners also regard the total GIS as including operating personnel and the data that go into the system.” ~ USGS

A geographic information system (GIS) is a computer-based tool for mapping and analyzing things that exist and events that happen on earth. GIS technology integrates common database operations such as query and statistical analysis with the unique visualization and geographic analysis benefits offered by maps.” ~ ESRI

“GIS is an integrated system of computer hardware, software, and trained personnel linking topographic, demographic, utility, facility, image and other resource data that is geographically referenced.” ~ NASA

A geographic information system is a special case of information systems where the database consists of observations on spatially distributed features, activities or events, which are definable in space as points, lines, or areas. A geographic information system manipulates data about these points, lines, and areas to retrieve data for ad hoc queries and analyses” (Kenneth Dueker,Portland State University, 1979).

GIS has already affected most of us in some way without us even realizing it. If you’ve ever using an Internet mapping program to find directions, congratulations, you’ve personally used GIS. The new supermarket chain on the corner was probably located using GIS to determine the most effective place to meet customer demand.

Uses of GIS

There are numerous ways in which this technology can be used. The most common ones are:

  1. Management of resources
  2. Investigations of the earth’s surface that is scientific in nature
  3. Archeological uses
  4. Planning of locations and management of assets
  5. Urban & regional planning
  6. Criminology matters
  7. An Impact assessment of the environment
  8. The assessment and eventual development of infrastructure
  9. Studies of the demographics of an area plus its population
  10. Analysis with regards to engineering

Some of the common instances where you will find the GIS in use include:

  1. Emergency response teams normally use GIS when they want to collect logistics with regards to how they will move in times of natural disasters.
  2. The system also comes in handy when authorities want to discover any potential wetlands that need to be protected from the harmful effects brought about by pollution.
  3. Companies also take advantage of the GIS so that they may be able to choose a strategic market location that has not yet been saturated by other competitors in the particular niche industry.
  4. Management personnel use this system also so that they can be able to locate areas that are bound to suffer from catastrophes with regards to the infrastructure that is in place there.
  5. Any potential spread of diseases & other such like pandemic are usually limited by the use of the GIS since the patterns of their occurrence is predicted in sufficient time.

The Development of GIS

One of the most famous early examples of spatial analysis can be traced back to London in the year 1854 when Dr. John Snow was able to predict the occurrence of cholera outbreak. Thanks to the study that Snow released, officials from the government were able to determine the cause of the disease; which was contaminated water from one of the major pumps. The map that Snow came up with was very interesting in that it had the capability of analyzing the phenomena relating to their geographical positions and this was the first time the world was witnessing this. Photozincography was developed in the earlier years of the 1900s and this enabled the maps to be divided into various layers as required. In the initial stages, the process of drawing these maps was lengthy since it involved free hand but this changed later on with the introduction of the computer.

The first GIS was created by Dr. Roger Tomlinson and then introduced in the early 1960s in Canada. During its inception, this system was mainly meant for collecting, storing and then analyzing the capability & potential which the land in the rural areas had. Prior to this, mapping by the use of computers was being used for such cases but this is a method that had numerous limitations associated to it. By the end of the 80s period, the use of GIS had already become popular in other related fields which is why it led to a spur in the growth of the industrial sector. Recently, designers came up with open source software for GIS so that the brilliant technology can be enhanced in a much simpler manner while being made available to all.

Components of GIS

The next step in understanding GIS is to look at each area and how they work together.  These components are:

  • Hardware
  • Software
  • Data
  • People

Hardware

Hardware comprises the equipment needed to support the many activities needed for geospatial analysis ranging from data collection to data analysis. The central piece of equipment is the workstation, which runs the GIS software and is the attachment point for ancillary equipment. Data collection efforts can also require the use of a digitizer for conversion of hard copy data to digital data and a GPS data logger to collect data in the field. The use of handheld field technology is also becoming an important data collection tool in GIS. With the advent of web mapping, web servers have also become an important piece of equipment.

Software

Different types of software are important. Central to this is the GIS application package. Such software is essential for creating, editing and analyzing spatial and attribute data, therefore these packages contain a myriad of geospatial functions inherent to them. Extensions or add-ons are software that extends the capabilities of the GIS software package. Component GIS software is the opposite of application software. Component GIS seeks to build software applications that meet a specific purpose and thus are limited in their spatial analysis capabilities. Utilities are stand-alone programs that perform a specific function. For example, a file format utility that converts from on type of GIS file to another. There is also web GISsoftware that helps serve data and interactive maps through Internet browsers.

Data

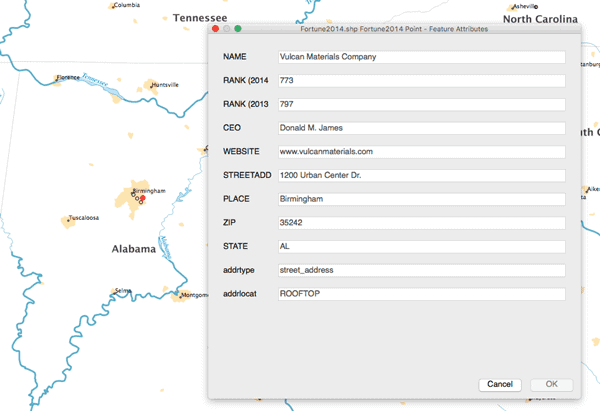

Data is the core of any GIS. There are two primary types of data that are used in GIS: vector and raster data. A geodatabase is a database that is in some way referenced to locations on the earth. Geodatabases are grouped into two different types: vector and raster. Vector data is spatial data represented as points, lines and polygons.  Raster data is cell-based data such as aerial imagery and digital elevation models.  Coupled with this data is usually data known as attribute data.  Attribute data generally defined as additional information about each spatial feature housed in tabular format. Documentation of GIS datasets is known as metadata.  Metadata contains such information as the coordinate system, when the data was created, when it was last updated, who created it and how to contact them and definitions for any of the code attribute data.

Layers of GIS Data

GIS data layers. Source: FCDC

People

Well-trained GIS professionals knowledgeable in spatial analysis and skilled in using GIS software are essential to the GIS process. There are three factors to the people component: education, career path, and networking. The right education is key; taking the right combination of classes.  Selecting the right type of GIS job is important.  A person highly skilled in GIS analysis should not seek a job as a GIS developer if they haven’t taken the necessary programming classes.  Finally, continuous networking with other GIS professionals is essential for the exchange of ideas as well as a support community.

Further reading:

GIS 101
Basic Uses of GISGIS GlossaryTypes of GIS DataTypes of Geographic Data Error • What is Metadata?

Article last updated: March 1, 2012. Article first written: November 12, 1999.
